SeccoMix R
SeccoMix R

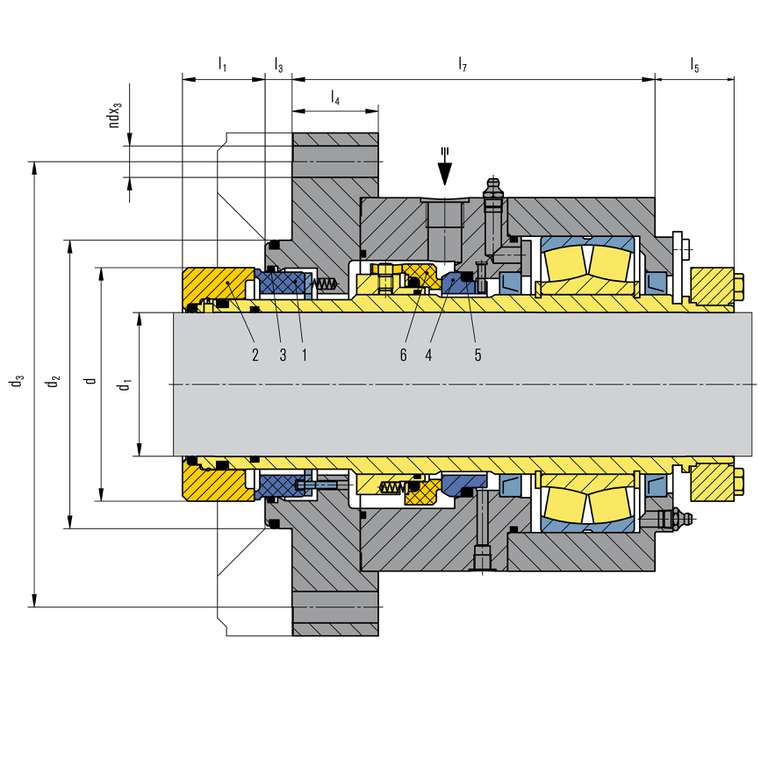

| Item | Description |
| 1 | Seal face, product side |
| 2 | Seat, product side |
| 3 | O-Ring, dynamic |
| 4 | Seat, atmosphere side |
| 5 | O-Ring |
| 6 | Seal face, atmosphere side |
SeccoMix R
Features
- For top, side and bottom entry drives
- Dry running
- Nitrogen pressurized dual seal
- Rotating seat at product side
- Balanced
- Independent of direction of rotation
Advantages
- Ready-to-fit and factory-tested units
- With or without bearing available
- Smooth surface, free of dead spaces
- No contamination of the product by barrier fluid
- Friction-locked connection to the shaft
- ATEX certification available on request
Materials
Seal face: Carbon graphite, FDA conform
Seat: Silicon carbide, FDA conform
Secondary seals and metal parts according to application and customer's specifications.
Seat: Silicon carbide, FDA conform
Secondary seals and metal parts according to application and customer's specifications.
Standards and approvals
- FDA
- ATEX
- Compliant to TA Luft (German Clean Air Act)
Recommended applications
- Refining technology
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Food and beverage industry
- Agitators
- Mixers
- Kneaders
- Dryers
- Reactors
Notes
Options:
- Axial bellows expansion joint (shaft movement)
- Scraper (shaft movement)
Recommended piping plans
Gas supply
EagleBurgmann GSS4015/A400-D0
for double seals SeccoMix R
EagleBurgmann GSS4015/A400-D0
for double seals SeccoMix R
Product variants

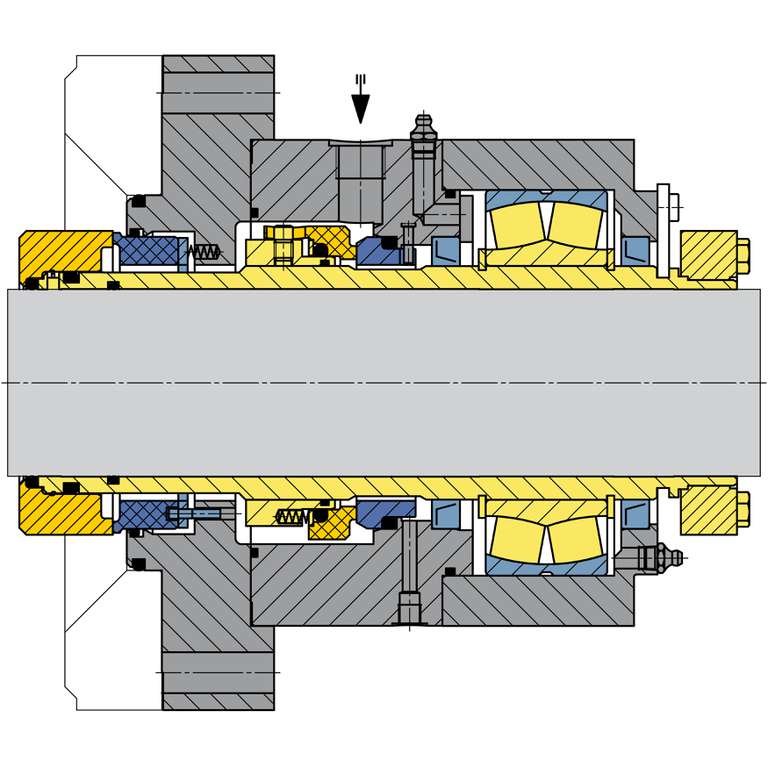

SeccoMix R3
Dual seal with solid seat and integrated floating bearing d1 ≤140 mm (5,51").
As an option with fixed bearing or without bearing available.
Dual seal with solid seat and integrated floating bearing d1 ≤140 mm (5,51").
As an option with fixed bearing or without bearing available.

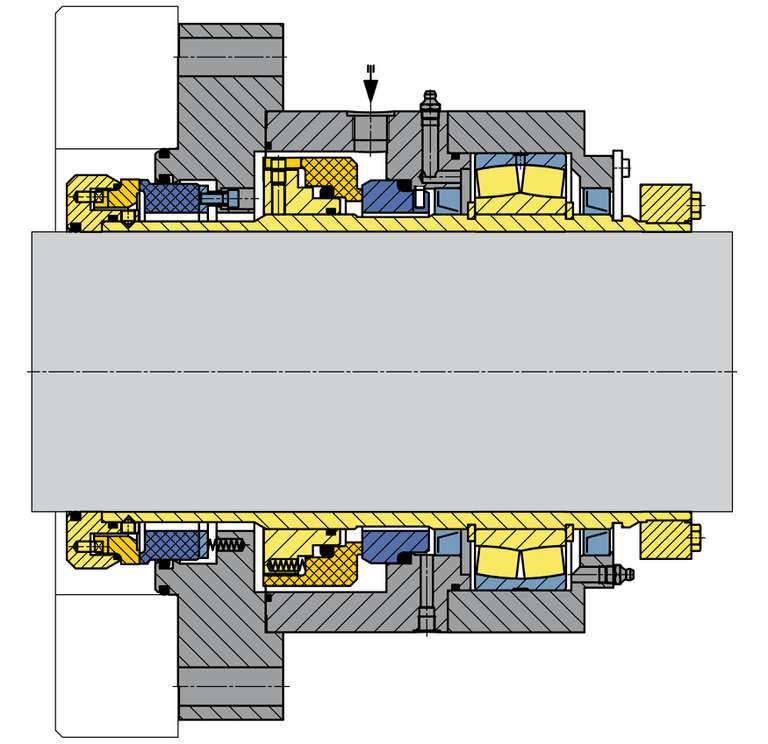

SeccoMix R5
Dual seal with „hook-sleeve“ and integrated floating bearing d1 >140 mm (5,51").
As an option with fixed bearing or without bearing available.
Dual seal with „hook-sleeve“ and integrated floating bearing d1 >140 mm (5,51").
As an option with fixed bearing or without bearing available.
