TS1000

TS1000
Request product

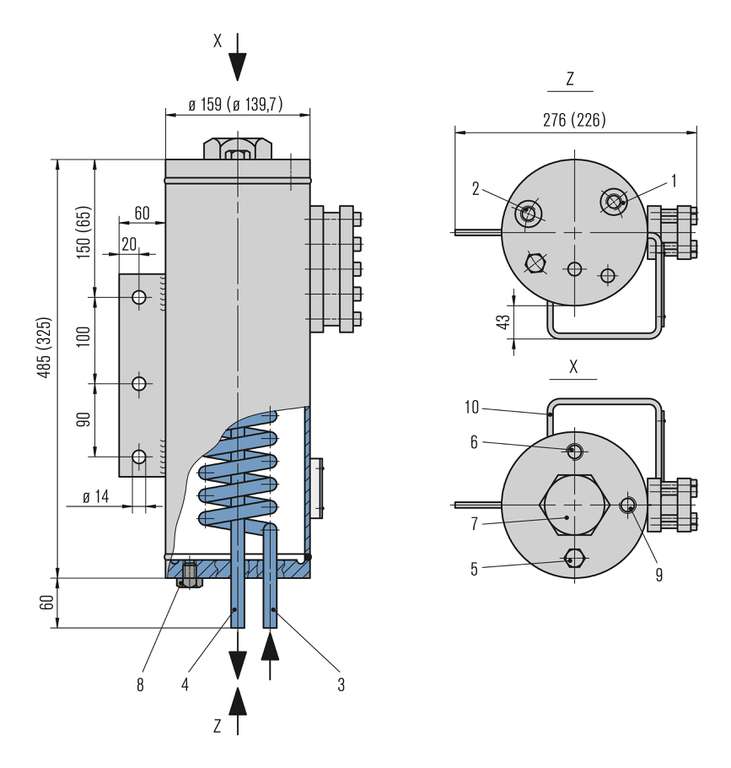

Item Description
1 Buffer/barrier fluid IN (G1/2")
2 Buffer/barrier fluid OUT (G1/2")
3 Cooling water IN (pipe 12 x 1.5 mm)
4 Cooling water OUT (pipe 12 x 1.5 mm)
5 Filling connection with cap (G1/2")
6 Pressure gas connection (1/4" NPT)
7 Connection for level switch (G2")
8 Connection for refill unit (G1/8")
9 Connection for pressure gauge (1/4" NPT)
10 Bracket for refill unit

Dimensions for TS1016/A007
Values in brackets: TS1016/A003.

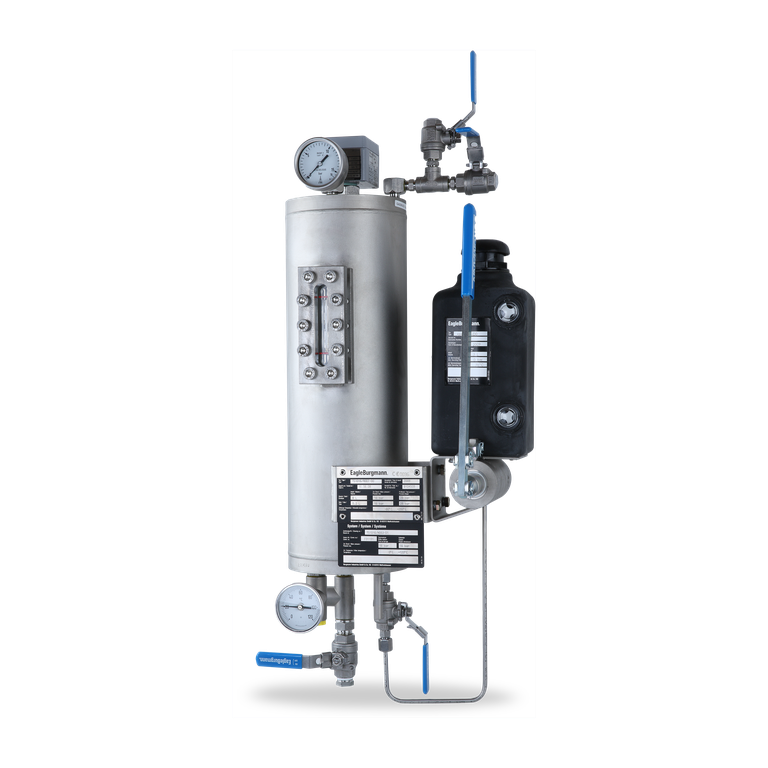

TS1000

Features

With the EagleBurgmann TS1016 thermosiphon system it is possible to supply buffer/barrier fluid to double and tandem mechanical seals for a broad range of applications. The TS1016 thermosiphon vessel is available in 2 standard sizes with flat ends, sight-glasses for level monitoring and with or without cooling coil. TS vessels are equipped as standard with all the necessary system connections and brackets. The modular system allows the TS1016 vessels to be combined with a wide range of system components such as, e.g. level switch, circulation pump, hand refill pump, thermometer, base frame, etc.

Circulation based on API 682 / ISO 21 049: Plan 52, Plan 53A

Advantages

  • Available in 2 standard sizes
  • Modular system: combination with a wide range of system components possible
  • Vessel made of 1.4571 stainless steel / borosilicate sight-glasses: suitable for universal applications
  • All system connections on the face sides
  • Available with or without cooling coil
  • Low space requirements because of compact design

Standards and approvals

  • PED 2014/68/EU (Design and production in accordance with EU Pressure Equipment Directive)
  • SELO, TR CU on request
  • Compliant to TA Luft (German Clean Air Act)

Functional description

The TS system performs all the basic functions of a buffer/barrier system for the operation of double seals:
  • to pressurize the buffer chamber
  • leakage compensation
  • buffer/barrier fluid is circulated by thermosiphon effect or forced circulation system
  • to cool the seal
  • to selectively absorb product leakage and prevent dry running (tandem arrangement)
Use compressed air or nitrogen for pressurization.


Product variants

Designation TS1016/A003 TS1016/A013 TS1016/A007 TS1016/A008 TS1016/A200
Standard design ■ ■
Design code PED 2014/68/EU PED 2014/68/EU PED 2014/68/EU PED 2014/68/EU PED / EN 13445
Integrated cooling coil ■ ■ ■
Volume of vessel (liters) 4 4 8 8 8
Volume of tube (liters) 0.2 0.2 0.2
Allowable pressure1) 16 bar
(232 PSI)		 16 bar
(232 PSI)		 16 bar
(232 PSI)		 16 bar
(232 PSI)		 16 bar
(232 PSI)
Allowable temperature1) -60 °C ... +160 °C
(-76 °F ... +320 °F)		 -60 °C ... +160 °C
(-76 °F ... +320 °F)		 -60 °C ... +200 °C
(-76 °F ... +392 °F)		 -60 °C ... +200 °C
(-76 °F ... +392 °F)		 -60 °C ... +200 °C
(-76 °F ... +392 °F)
Working volume, MAX-MIN (liters) 1.2 1.2 1.3 1.3 1.3
Cooling capacity –
natural circulation (kW) 2) 		1.0 1.2 1.2
Cooling capacity –
forced circulation (kW) 2) 		2.0 2.5 2.5
Metal parts 1.4571 1.4571 1.4571 1.4571 1.4571
Sight-glass Round Borosilicate Round Borosilicate Reflex Borosilicate Reflex Borosilicate Reflex Borosilicate
Seal PTFE PTFE PTFE PTFE PTFE

Other versions on request.

1) Design data, permissible working values depend on the actual conditions of service.
2) The cooling performance depends on the available fluids, their temperatures and flow rates. Please contact EagleBurgmann for professionally selecting the correct heat exchanger.






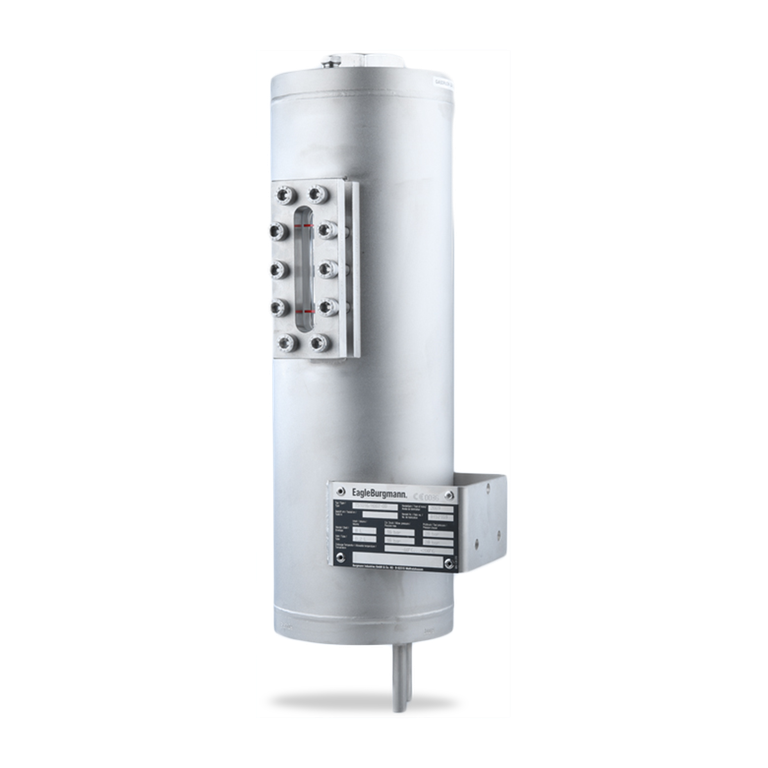

TS1016/A003
TS1016/A007
