BuraTAL-Flex 6224

Request product

BuraTAL-Flex 6224

BuraTAL-Flex 6224
Request product

BuraTAL-Flex 6224

Features

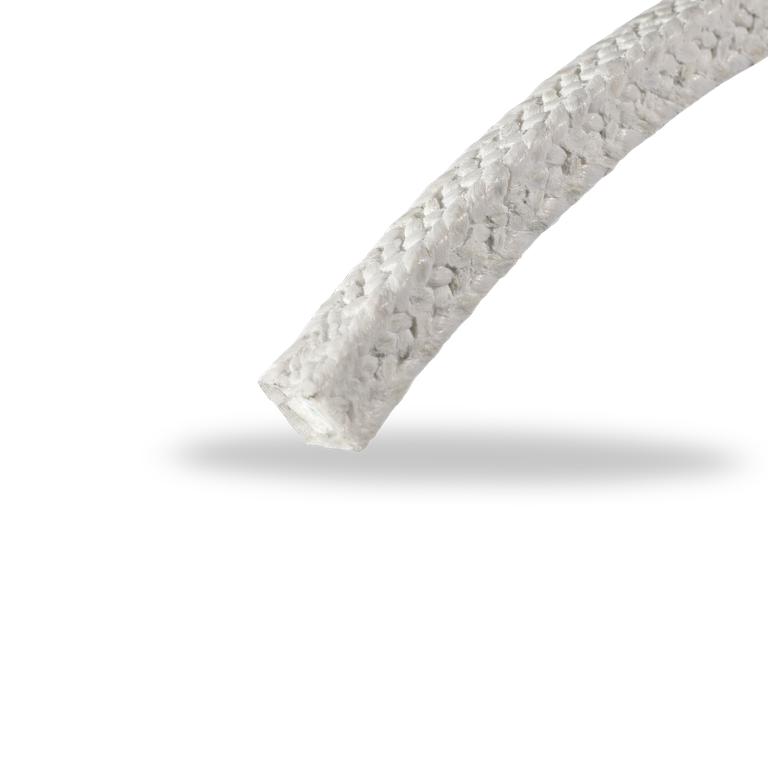

BuraTAL-flex 6224 is a diagonal braided packing made from a combination of Aramid and PTFE yarns with special impregnation. 6224 is the preferred choice for valves, especially low emission applications.

Advantages

  • Low leakage rates
  • Emission certificate
  • Good pressure and extrusion resistance
  • Low friction
  • Suitable for quick repair service

Operating range

Pressure: p = 300 bar
Sliding velocity: vg = 2 m/s

Temperature
  • t = -100 °C … +280 °C

Chemical resistance:
pH = 0 ... 14
Density: 1.6 g/cm³

Standards and approvals

  • TA-Luft
  • ISO 15848

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg
