eMG Blue

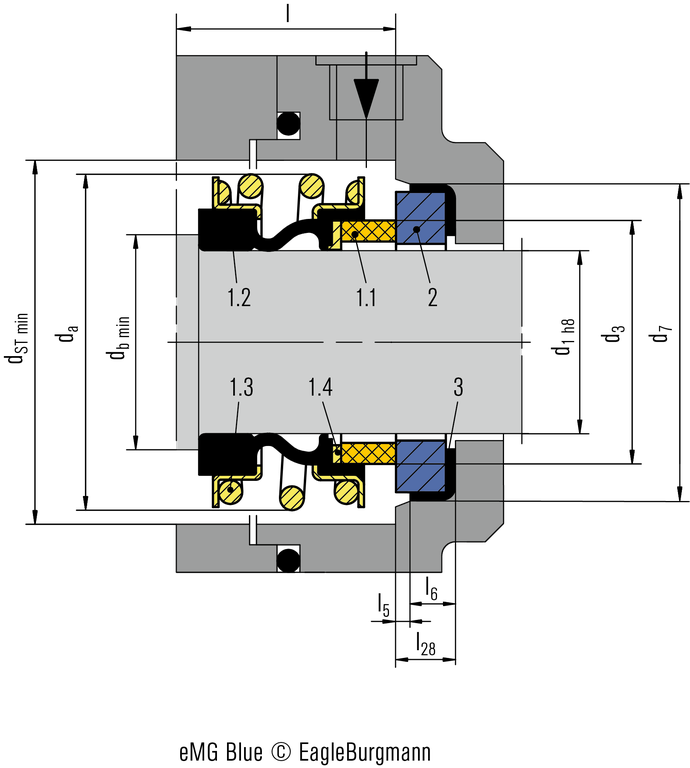

| Item | Description |
| 1.1 | Seal face |
| 1.2 | Bellows |
| 1.3 | Set of springs |
| 1.4 | Disk |
| 2 | Seat (G60) |
| 3 | Rubber cup |

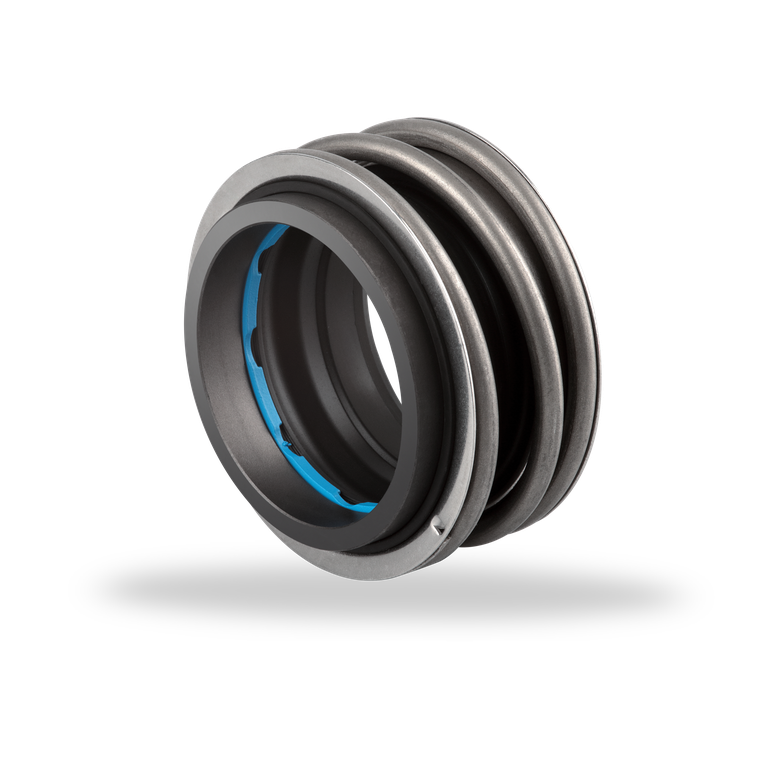

eMG Blue
Features
- 100% design compatibility with eMG1 and MG1
- For plain shafts
- Elastomer bellows rotating
- Balanced
- Independent of direction of rotation
- Insensitive to shaft deflections due to large axial movement ability
Advantages
- Patented disk for improved centering across entire pressure operating range
- Small outer diameter of bellows support (dbmin) enables direct retaining ring support, or smaller spacer rings
- Optimal axial movement through self-cleaning of disk/shaft
- No torsion on bellows
- Shaft protection over entire seal length
- Protection of seal face during installation due to special bellows design
- Suitable for low-end sterile applications
- Can be used as double seal in tandem or in a back-to-back arrangement
Operating range
d1 = 45 … 100 mm (1.77" ... 3.94")
Pressure: p1* = 12 bar (174 PSI),
vacuum ... 0.5 bar (7.25 PSI),
up to 1 bar (14.5 PSI) with seat locking
Temperature: t = -20 °C … +80 °C
(-4 °F … +176 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Admissible axial movement: ±2.0 mm (±0.08")
* Max. operating pressure in a standard single stage/single suction overhung prosses pump with balance bores, back side impellor or flat backside design without throttle gaps or balance bores. If recommendations for a specific application are required please contact your EagleBurgmann specialist.
Materials
Seat: Silicon carbide (Q2),
Tungsten carbide (U2)
Elastomer: EPDM (E), NBR (P), FKM (V)
Metal parts: Stainless steel (F)
Recommended applications
- Fresh water supply
- Building services engineering
- Waste water technology
- Food technology
- Water, waste water, slurries (solids up to 5% by weight)
- Chemical standard pumps
- Helical screw pumps
- Stock pumps
- Circulating pumps
- Susmersible pumps
- Water and waste water pumps
